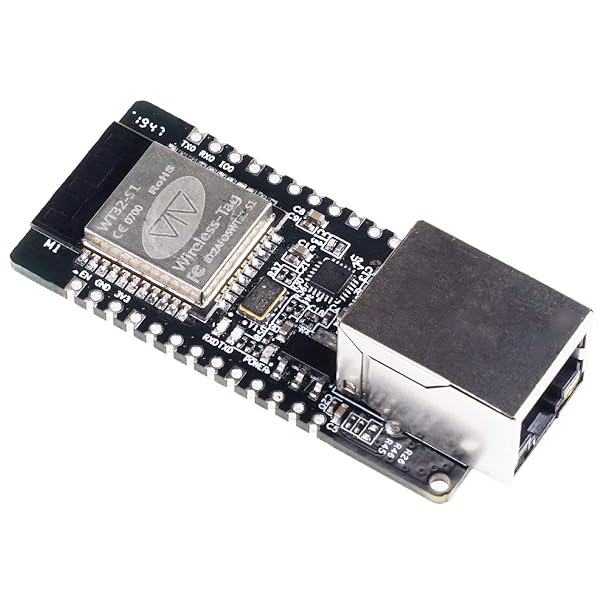

JacobsParts WT32-ETH01: High-Speed ESP32 Module with Ethernet, WiFi & Bluetooth - 100Mbps RJ45 Development Board

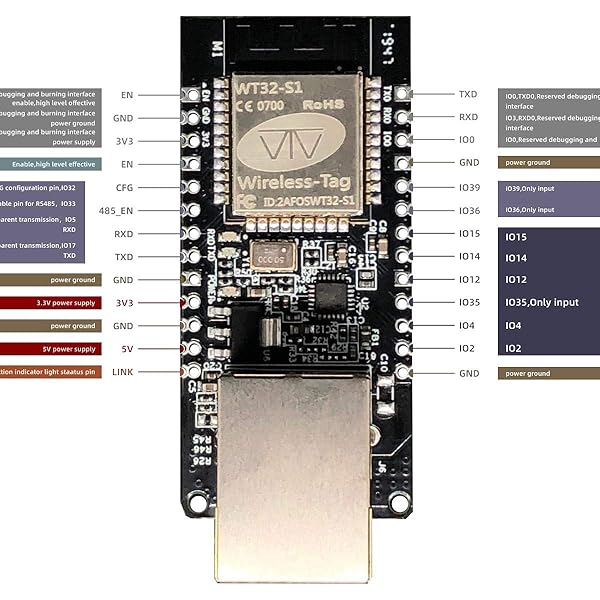

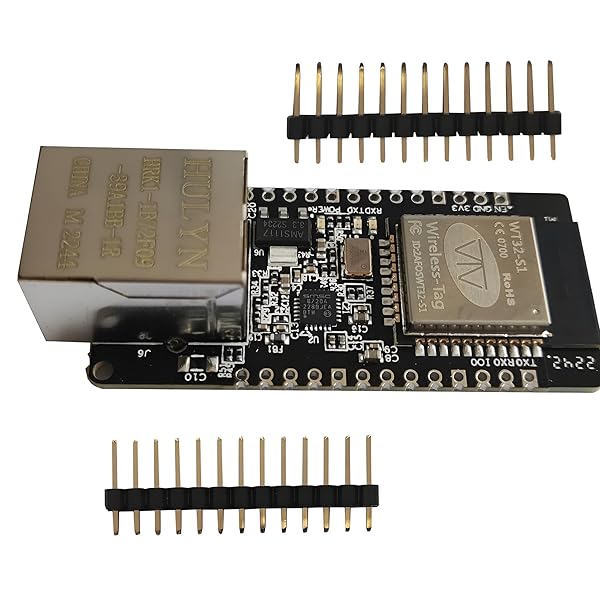

JacobsParts WT32-ETH01 ESP32 Module Ethernet WiFi Bluetooth Development Board 100Mbps RJ45!Discover the JacobsParts WT32-ETH01 ESP32 Module Ethernet WiFi Bluetooth Development Board 100Mbps RJ45. Built for dependable performance, easy setup, and everyday value.Key features- The issue with the top soldered pins has been resolved, they are now shipping with separate unsoldered pins WT32-ETH01 is an embedded serial to Ethernet module based on the ESP32 series WT32-S1 MCU- The module integrates an optimized TCP/IP protocol stack, which is convenient for users to easily complete the networking functions of embedded devices while reducing development time cost- In addition, the module is compatible with half-pad and through-hole connectors- The board width is a universal width and therefore, it can be directly soldered to boards, connectors, or even breadboards, which is convenient for users to use in different scenarios- ESP32 series IC is an integrated 2.4GHz Wi-Fi and Bluetooth dual-mode SOC, with ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption- ESP32 Module: WT32-S1 240MHz dual core microprocessor 4MB SPI flash memory Onboard 10/100Mbps RJ45 Ethernet (LAN8720A PHY) 802.11n WIFI Bluetooth 4.2Benefits- The issue with the top soldered pins has been resolved, they are now shipping wi- The module integrates an optimized TCP/IP protocol stack, which is convenient fo- In addition, the module is compatible with half-pad and through-hole connectorsDetailsThis item is designed to deliver reliable results with minimal effort. It fits into a wide range of home and office setups, offering stable performance and consistent quality. Use it as a drop-in upgrade or as a trusted replacement to keep your workflow smooth.How to use- Unbox and review the quick start guide.- Inspect contents and verify compatibility.- Follow setup steps to connect and configure.- Test the product and keep the guide for reference.Ready to buyAdd the JacobsParts WT32-ETH01 ESP32 Module Ethernet WiFi Bluetooth Development Board 100Mbps RJ45 to your cart and enjoy a simple, reliable upgrade.
