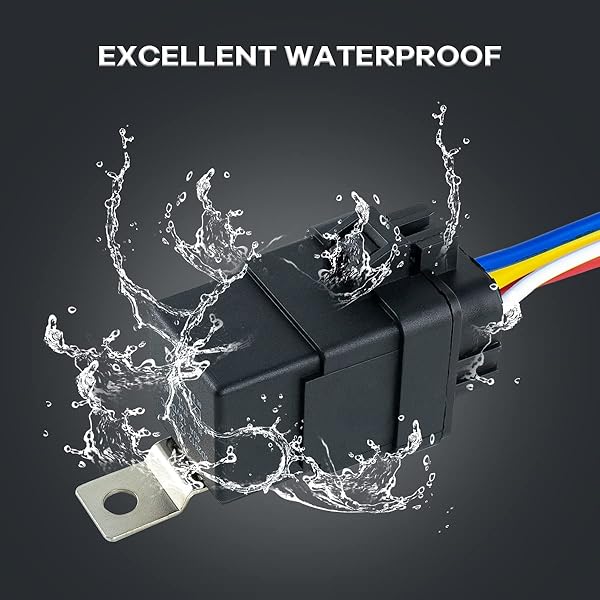

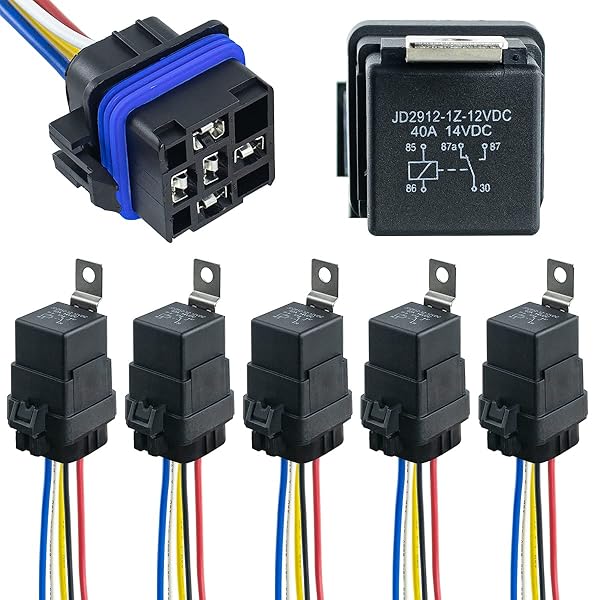

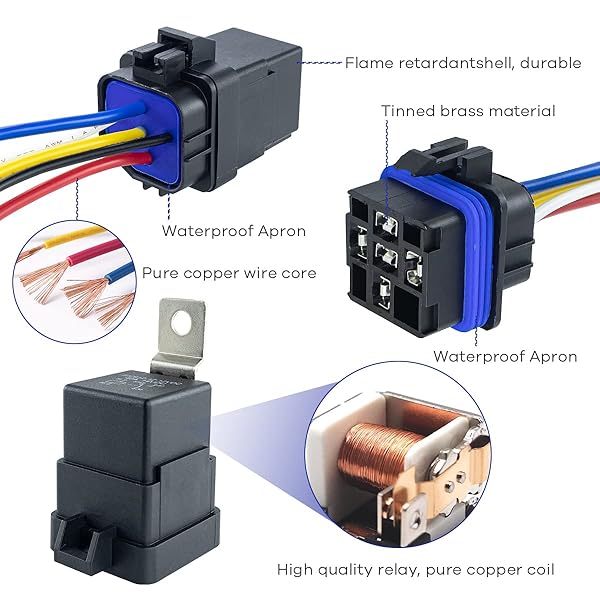

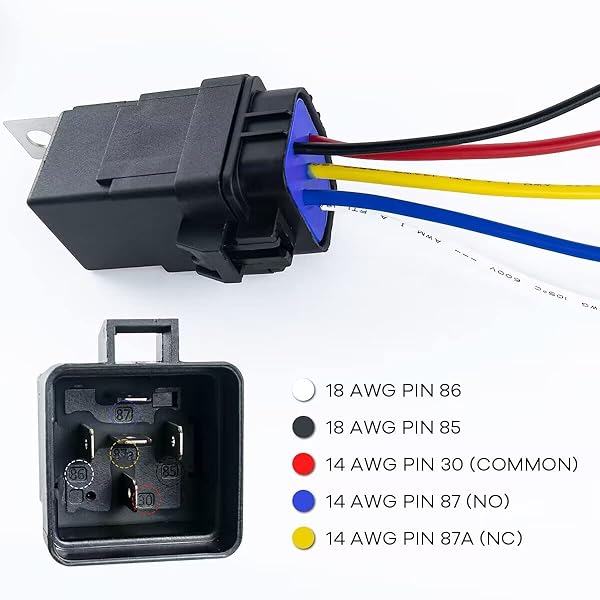

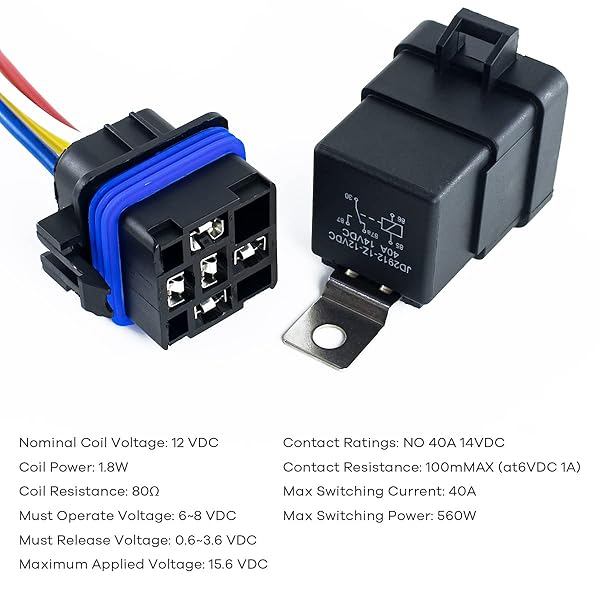

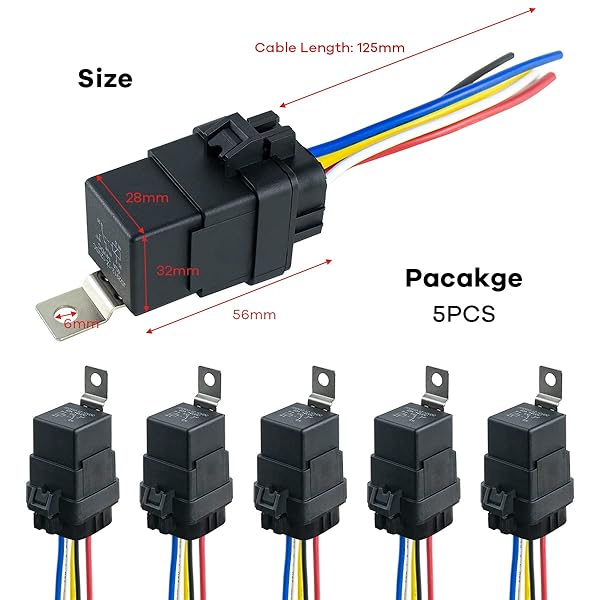

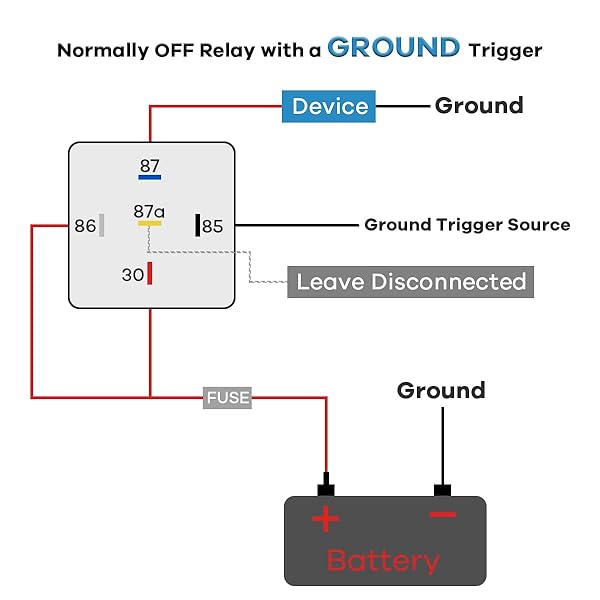

Hosyond 5 Pack 12V DC 40/30 AMP Waterproof Relay Harness Tinned Copper Wires 5-PIN SPDT Automotive RelayParameter: Product features: large capacity, can switch 40 ampere current Standard contact forms are available: 1 set of switching, 2 sets of normal Working temperature: -40 to+125 Main application: Automobile control device Dimensions length*width*height (inches): 7.9*1.4*1.7 Contact form: 1a, la, 1c, 2a Contact capacity: 1a/2a: 40A 14VDC 1b: 30A 14VDC 1c: 40A/30A 14VDC Coil voltage: 5-14VDC Coil power (W): 1.80 Contact resistance: 50m Insulation resistance: 100M Dielectric withstand voltage: 500VAC between open contacts 500VAC between coil contacts Package include 5 x 12V DC 40/30 AMP Waterproof RelayKey features- 12VDC (14V max) waterproof 5-pin SPDT (Single Pole Double Throw) pure copper coil relay with 40A/30A high switching capability.- The relay harness is encapsulated with a rubber ring, which is waterproof and dustproof. Fixed metal holes for easy installation.- Pure copper core cable, tinned brass pins, with higher conductivity and more stable performance. 3*14 AWG and 2*18 AWG, Length: 5 inches.- Wire Sizes: White - Ground (85), Blue - VDC (30), Black - Trigger (86), Red - Output N/C (87a) and Yellow - Output N/O (87).- The relay kit is made of high-grade flame-retardant materials to ensure safe use and long service life.Benefits- Enhances everyday usability- Delivers consistent and reliable performance- Built to support long term use- Simple and practical designProduct detailsHosyond 5 Pack 12V DC 40/30 AMP Waterproof Relay Harness Tinned Copper Wires 5-PIN SPDT Automotive Relay is manufactured using dependable materials and practical technology to ensure stable performance and durability.How to use- Unbox the product and verify all components- Set up according to basic usage requirements- Operate the product as intended- Clean and store safely after useReady to buyAdd the Hosyond 5 Pack 12V DC 40/30 AMP Waterproof Relay Harness Tinned Copper Wires 5-PIN SPDT Automotive Relay to your cart today and experience reliable quality and everyday value.
