ACEIRMC

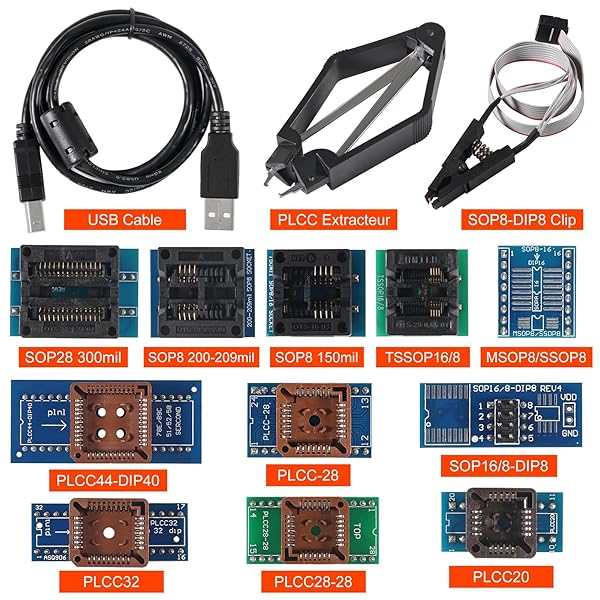

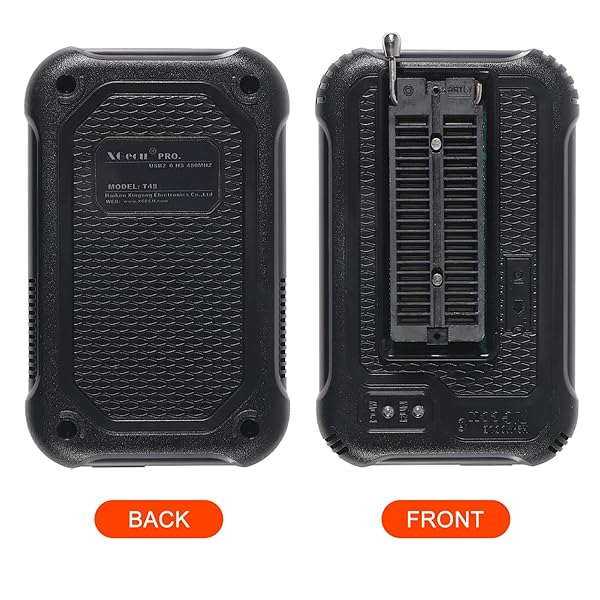

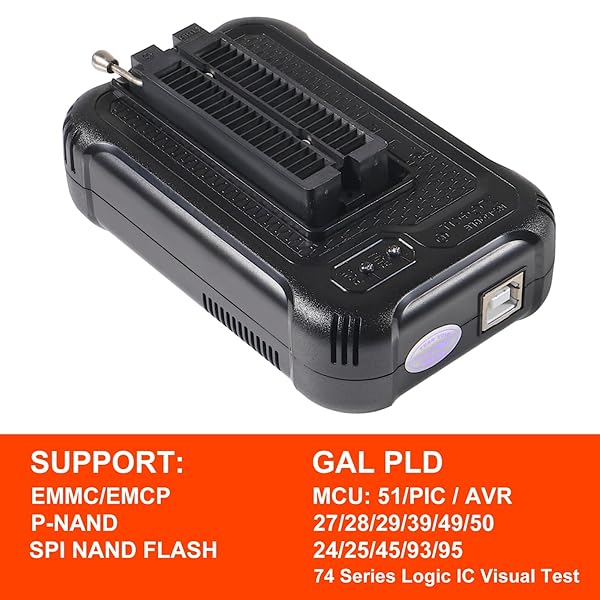

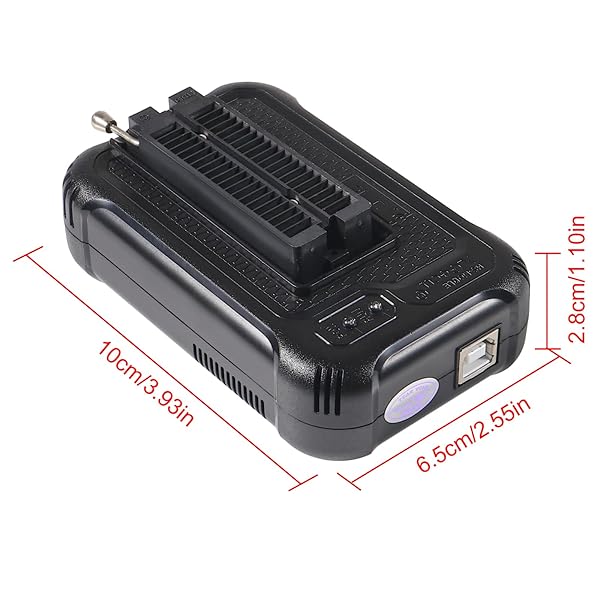

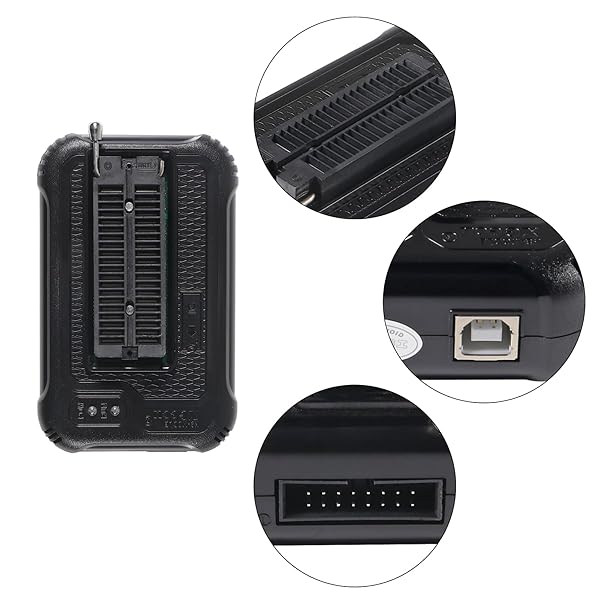

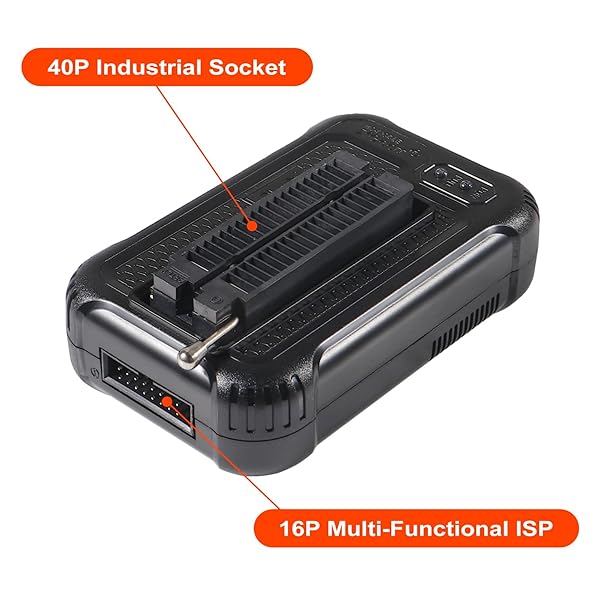

ACEIRMC T48 (TL866-3G) Programmer Support 34000+ ICS for SPI/Nor/NAND Flash/EMMC BGA/TSOP/SOP/PLCC (T48 Programmer Host+13 Adapter)Description: With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable), newest model T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer. Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, VPP Maximum up to 25V, that is what TL866II cannot achieve. Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code-runs much faster, support multilanguage menu (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian), it can automatically identify the operating system to install and run under Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11. Overall, T48 offers significantly improved performance and excellent value for money. T48 (TL866-3G) hardware Parameters: * 32-bit MCU with 120MHZ, 4-layer PCB Design, USB2.0 HS 480MHZ * Volume: 10X6.5X2.8 cm (almost the same as TL866II) * 16 channel ISP Total 56-channel dedicated IO 56-channel high-speed high-voltage isolation * VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable. * Power consumption: 5V Key features- Programming speed much faster. For example, for W25Q80, 3.5s+0.3s(Program+Verify) (30MHZ); for SPI NOR FLASH 25Q128, 30s+5.4s(P+V) (30MHZ); for P_NAND 29F1G08AB, 27s+17s(P+V); for P_NOR FLASH EN29LV320 TSOP48, 24s+1.9s(P+V)...... Support EMMC/EMCP; P-NAND; SPI NAND FLASH; GAL PLD; MCU: 51/PIC/AVR; 27/28/29/39/49/50; 24/25/45/93/95; 74 Series Logic IC Visual Test- Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small (size is almost the same as TL866II), code-runs much faster, support multilanguage menu (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian), it can automatically identify the operating system to install and run under Windows XP,2003,2008,Vista Win7 WIN8 WIN10 WIN11.- T48 (TL866-3G) hardware Parameters: 32-bit MCU with 120MHZ, 4-layer PCB Design, USB2.0 HS 480MHZ; Volume: 10X6.5X2.8 cm (almost the same as TL866II); 16 channel ISP, total 56-channel dedicated IO, 56-channel high-speed high-voltage isolation; VCC voltage 1.8-6.5V 64 levels adjustable, VPP voltage 9V-25V 64 levels adjustable; Power consumption: 5V - With 40-pin industrial high-quality ZIF Socket (Pluggable/replaceable), newest model T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer. Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to 256GB and programming speed is much higher. Suppport high-voltage chips, such as 27Cxxx series, VPP Maximum up to 25V, that is what TL866II cannot achieve.- T48 Programmer Support 31000+ ICS for EPROM/MCU/SPI/Nor/NAND Flash/EMMC/IC Tester/ TL866CS TL866II Plus ReplacementBenefits- Enhances everyday usability- Delivers consistent and reliable performance- Built to support long term use- Simple and practical designProduct detailsACEIRMC T48 (TL866-3G) Programmer Support 34000+ ICS for SPI/Nor/NAND Flash/EMMC BGA/TSOP/SOP/PLCC (T48 Programmer Host+13 Adapter) is manufactured using dependable materials and practical technology to ensure stable performance and durability.How to use- Unbox the product and verify all components- Set up according to basic usage requirements- Operate the product as intended- Clean and store safely after useReady to buyAdd the ACEIRMC T48 (TL866-3G) Programmer Support 34000+ ICS for SPI/Nor/NAND Flash/EMMC BGA/TSOP/SOP/PLCC (T48 Programmer Host+13 Adapter) to your cart today and experience reliable quality and everyday value.
