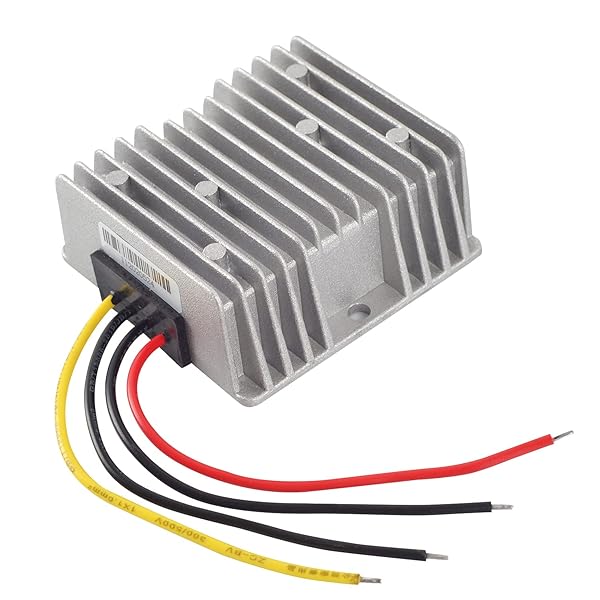

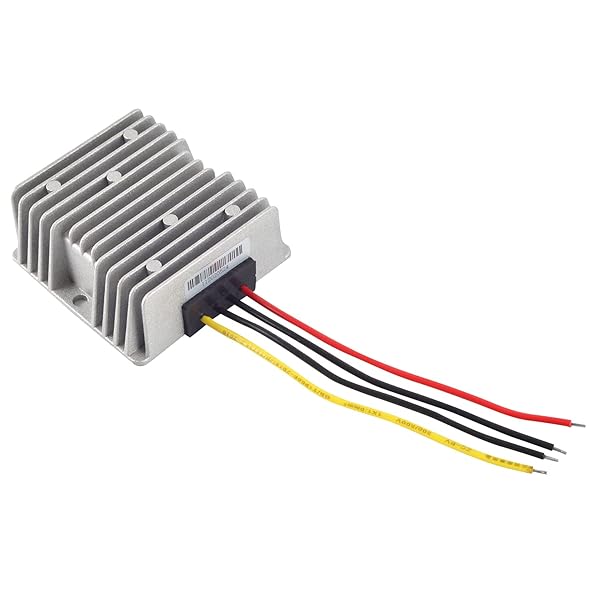

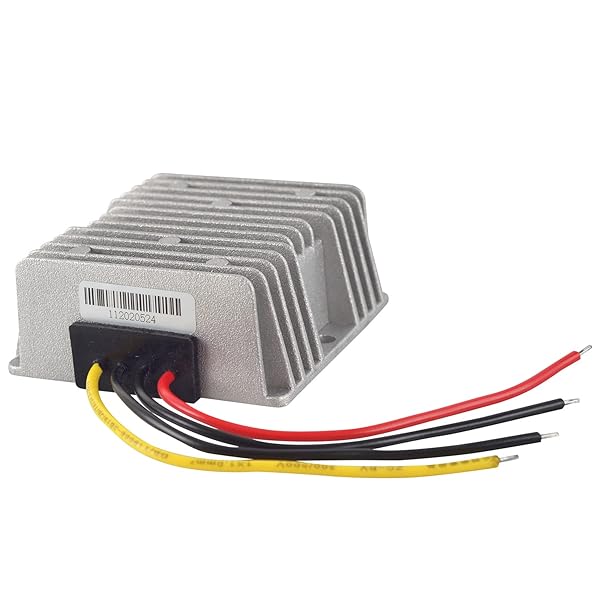

12V to 24V DC Step Up Converter Input(9-20V) Boost Voltage Booster Transformer (15A 360W)

12V to 24V DC Step Up Converter Input(9-20V) Boost Voltage Booster Transformer (15A 360W)Application: New energy vehicles, golf carts, ships, DC motors, intelligent robots, electric bicycles, solar photovoltaic, industrial equipment, on-board equipment, LED equipment,Communication equipment Multiple core advantages: Overvoltage protection: the power supply is damaged, and the output is automatically disconnected. Prevent high-voltage direct breakdown of electrical appliances when the power supply is damaged, and reduce the damage rate of electrical appliances Overcurrent protection: when the output current is greater than the set value, the output voltage gradually decreases until the converter is shut down and there is no output. Short circuit protection: under normal application, the converter output will be short circuited to the ground instantaneously without causing damage to the power converter High temperature protection: the working environment temperature of the converter can be - 40-85 . When the shell temperature exceeds 85 , the converter automatically protects Output anti reverse connection protection: the output positive and negative electrodes are wrongly connected, and the power module is not damaged. Prevent the wrong connection of the positive and negative output poles and reduce the damage rate of the power supply. IP67 waterproof, dustproof and shockproof, organic silicone encapsulation, suitable for various harsh environments Die cast aluminum alloy shell, with better heat dissipation and heat conduction effect FR-4 multilayer circuit board. SMT elements are used for resistance, capacitance and switching MOS tubes, which makes the power supply have high integration, high reliability and high temperature performance. Product model: 12V to 24V DC Step Up Converter Output current: 15A Output power: 360W Brand: KAABEE Input voltage: between DC (9-20) V Output voltage: DC 24V Voltage accuracy: 1% Load regulation rate: 0.2% Linear adjustment rate: 0.2% No load current: 24mA Ripple: 80mA Conversion efficiency: 94% - 96% Module nature: DC-DC non isolated power supply Protection grade: IP67 Operating temperature: - 35 C~+80 C Boundary dimension: 74 * 74 * 32 Net weight: 300g Wiring mode: lead, line length 12CM Repair time: 1 year Service life: 100,000 hours matters needing attention: 1. Make sure that all polarities are correct before wiring. Reverse connection will burn out the converter. It is recommended to connect a fuse at the input end (not provided by the manufacturer) 2. Ensure that the battery energy and voltage at the input end are sufficient, otherwise the converter will be in the protection state 3. Ensure that the installation environment is well ventilated to avoid high temperature protection and limit current output. 4.During normal operation of the module, allowance should be reserved for the power module. It is recommended to work below 90% of the rated power for a long time. If the module operates at full load for a long time, please provide good cooling conditions to extend the service life of the module and improve reliability. 5.Any power converter may fail under certain conditions. Users should comply with the operating standards and take safety protection measures when using our products to avoid potential risks that may cause personal injury or property damage. 6.Non-isolated step-down series products have the advantages of high conversion efficiency, wide working range of input voltage, small size and other characteristics. The disadvantage is that there is a risk that the high voltage input end is directly connected to the low voltage load end, which may cause damage to the load at the user end. Please consider carefully when selecting the product. If the load is more expensive, we strongly recommend the user to choose our isolated power supply product.Key features- Input Voltage: DC 9V-20V / Output Parameters: DC 24V, 15A, 360W.Please ensure that the input power is greater than the load power. This product is only used for power conversion- Wiring:Red: Input + Black: Input - Yellow: Output + Black: Output - Size: 4* 2 *3 inches / 74*74*32mm AWG:12- High conversion efficiency:conversion efficiency up to 95%.Protection: High quality aluminum shell, Fast heat dissipation. Built in Overload, Overcurrent, Overvoltage, Overtemperature and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation- Application: Widely used in golf cart, photovoltaic, electric power, monitoring system, automobile, electric bicycle motorcycle scooter, led, instrument, etcBenefits- Enhances everyday usability- Delivers consistent and reliable performance- Built to support long term use- Simple and practical designProduct details12V to 24V DC Step Up Converter Input(9-20V) Boost Voltage Booster Transformer (15A 360W) is manufactured using dependable materials and practical technology to ensure stable performance and durability.How to use- Unbox the product and verify all components- Set up according to basic usage requirements- Operate the product as intended- Clean and store safely after useReady to buyAdd the 12V to 24V DC Step Up Converter Input(9-20V) Boost Voltage Booster Transformer (15A 360W) to your cart today and experience reliable quality and everyday value.
